LOS ANGELES – Every year the Los Angeles Philharmonic performs a 15-week series of summer concerts at the Hollywood Bowl, then returns for the rest of the year to Walt Disney Concert Hall. The Hollywood Bowl acquired a pair of DiGiCo SD7 consoles in 2014, and that influenced the decision to equip the Walt Disney Concert Hall with DiGiCo consoles as well. ATK Audiotek provided SD5 and SD10 consoles for FOH and monitors. Pictured here are Fred Vogler and Kevin Wapner at the SD5 house desk.
More details from DiGiCo (www.DiGiCo.biz):
“With our success at the Hollywood Bowl using DiGiCo, we considered the consoles pretty seriously when it was time to look at what we could do for the Concert Hall,” explains Fred Vogler, principal sound designer and mixer for LA Phil. “We wanted a desk that was easy to use, had good input/output flexibility, and provided future expandability. It also made sense for us to have the same type of consoles at the summer home of the LA Phil when we’re at the Concert Hall during the winter season.”
The 96 kHz operation of the DiGiCo consoles at the Hollywood Bowl played a significant part in the audio quality improvements at that venue, according to Kevin Wapner, the Concert Hall’s head of audio/video, and assistant audio/video and monitor mixer at the Bowl. “So the year before we made this latest purchase decision, we converted all our paths at the Concert Hall to 96k capability via Rocknet in preparation for moving in this direction,” he reports. “The transition was really smooth, going from the previous consoles to the DiGiCos and using the fiber loop between them. Audiotek’s integration and their knowledge got us up and going—it was seamless.”

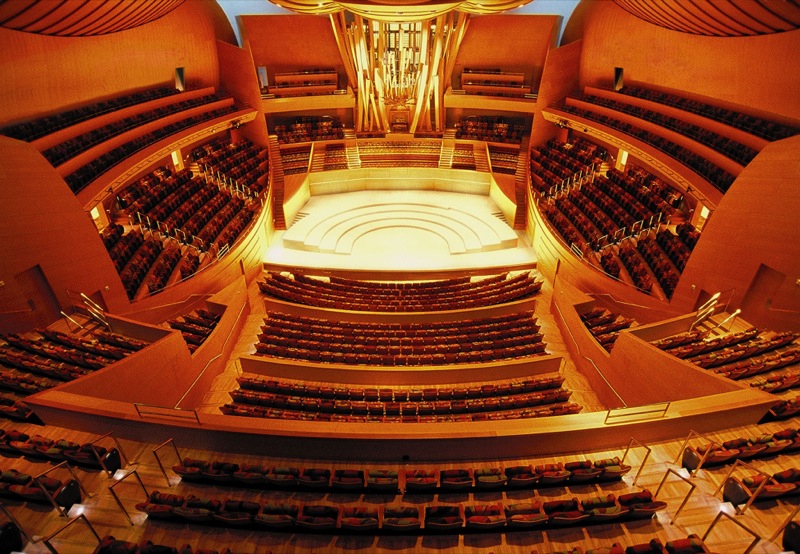

No less important are the matrix output capabilities of the SD5. While the clarity of the acoustics in the Concert Hall, designed by acoustician Yasuhisa Toyota, rarely requires the DiGiCo FOH console to handle more than 40 inputs for non-orchestral performances, the SD5 enables granular control of the complex sound reinforcement system, which is deployed only when needed. Custom left and right main speakers on the stage fire forward, sideways, and rearward, as do the center-hung arrays. Front fills cover the first few rows of seating, and there are also ceiling speakers and balcony delays.
“Everything is addressable,” Vogler elaborates. “You can change the level to the forward JBL VT4887 array—the upper and lower portions are separately addressed—as well as the sides and rear. You can also individually address the main custom ATC speakers. That was another factor in picking the DiGiCo console—we needed something with excellent matrixing and routing. The EQ sounds great on this board and the routing is superb. It’s a good tool for defining the sound and sending it where you want it to go. And the way you can arrange things on the console is very intuitive and comfortable.”
The resident Concert Hall engineers, Randy Piotroski (FOH) and Leland Alexander (monitors), make extensive use of the DiGiCo system’s snapshot capabilities, according to Wapner: “We have starting templates, because the distribution of the PA is so complex, and we don’t want to reinvent it for each show.” Snapshot templates have been defined for the Concert Hall’s Symphonies for Schools schedule; Casual Fridays, which includes a Q&A session between the artists and the audience; jazz and other amplified ensembles; choral and opera performances; and other events.
During LA Phil performances, which make full use of the hall’s natural acoustics, the SD5 is moved on its custom stand, built in-house, to a booth behind the mix position for use as a recording console. “Archival recording is by and large a stereo mix onto a flash drive,” reports Wapner. “It’s usually five mics across the front—left, right, and the tree—and the audience mics.” For broadcast recordings, a Merging Technologies Pyramix system tracks every microphone via Horus converters.
Equipment purchase decisions at the prestigious Walt Disney Concert Hall undergo very careful consideration, as Wapner explains. “It’s really high quality audio here, and there’s a lot of critical listening. We always say it’s like being under a microscope, times a thousand.”
“Whatever piece of technology you introduce into this environment is going to be scrutinized. The expectations of the management and the artists are extremely high, so sonic performance as well as how it looks and operates are a really big deal,” says Vogler.
He adds, “We really enjoy the sound, the performance and the ease of use. Everybody who works on the board comes away feeling like they had an easy time on it.”
The Music Center opened on December 6, 1964 as a public/private not-for-profit partnership with the County of Los Angeles. The original complex was comprised of three venues: the 3,197-seat Dorothy Chandler Pavilion, the 739-seat Mark Taper Forum, and Ahmanson Theatre, which offers flexible seating for 1,200 to 2,100. On October 23, 2003, The Music Center opened the Frank Gehry-designed 2,252-seat Walt Disney Concert Hall, expanding the campus to 12 acres. Walt Disney Concert Hall includes the 270-seat Roy and Edna Disney/CalArts Theater (REDCAT), the 300-seat William M. Keck Foundation Children’s Amphitheatre, and the 120-seat Nadine and Ed Carson Amphitheatre. For more information, visit www.musiccenter.org.
