More details from RCF (www.rcf.it):

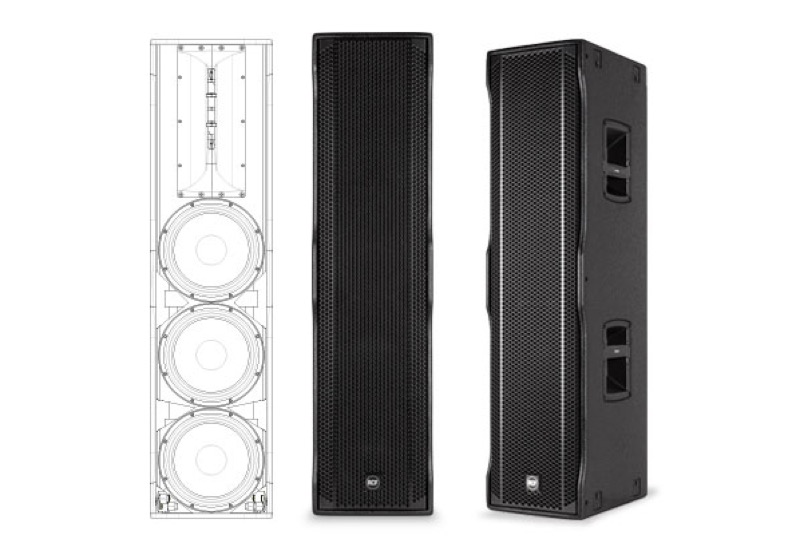

With the NX L44-A, RCF has developed a powerful two-way line source that delivers high-performance sound. Three 10” neodymium woofers and a 1.4” high frequency driver with 3“ voice coil on an asymmetrical waveguide are precision-controlled by on-board DSP and powered by a two-channel 1400-watt digital amp, delivering very natural articulation and high SPL for professional live sound reinforcement.
Applications
– Digital bi-amped amplifier with 1400 Watt peak power
– 3 x 10“ neodymium woofer
– 1.4“ compression driver, 3.0“ voice coil with a waveguide
– DSP Processing with optimized phase response
– Scalable
– Easy to fly and install with built-in rigging points
-PortablePA
– Live sound
– Performance venues
– Houses of worship
– Rental
– Live Clubs
Technology and features

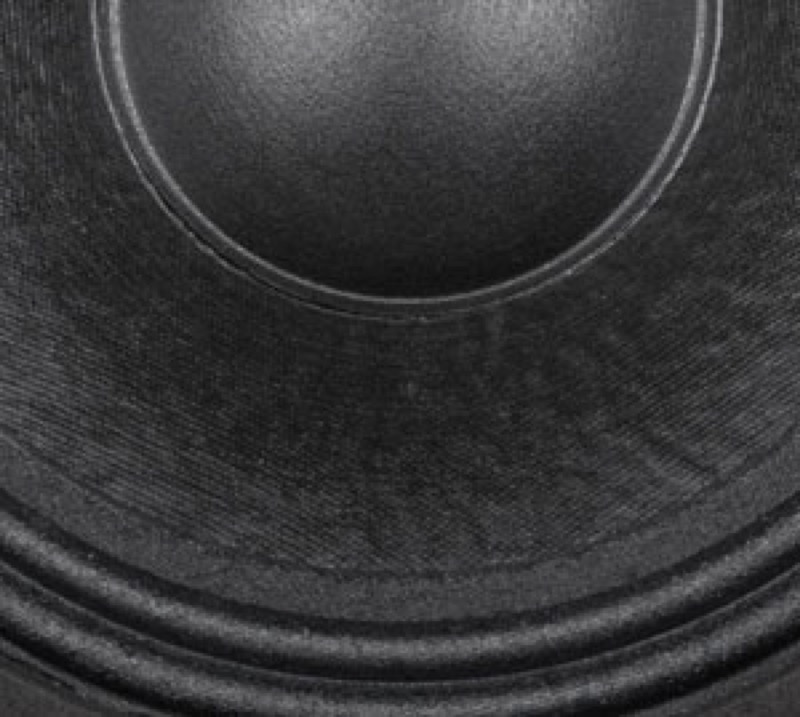

Low frequencies
The NX L44-A 10” neodymium mid-bass woofers offer excellent linearity, superb efficiency and high power handling capabilities. The 2.5” voice coil combined with a high strength fiberglass former allows for high efficiency and superior frequency response extension.
The M-roll surround shape, exponential cone geometry and dual spider design offer exceptional linear response and precise low frequency reproduction.

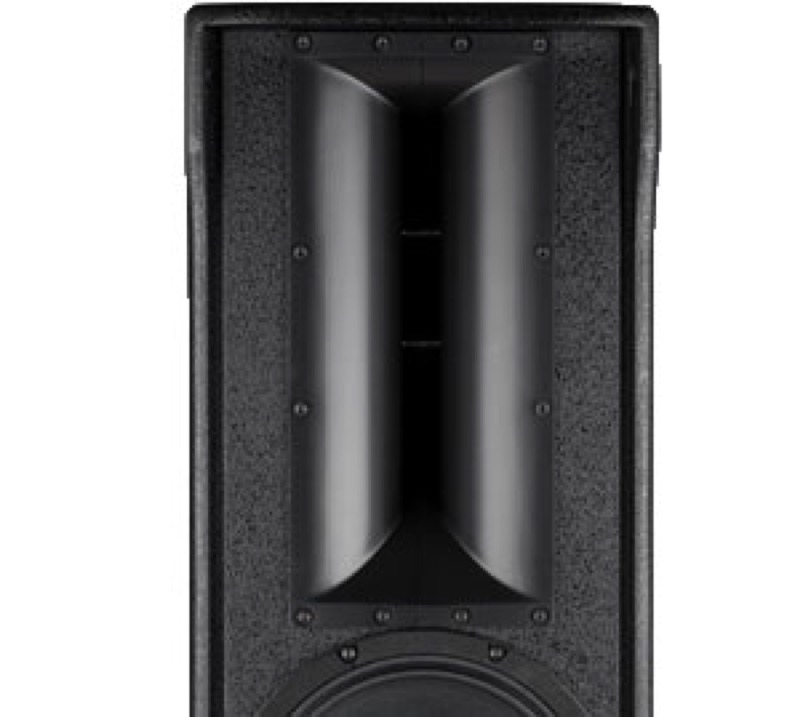

High frequencies
The high-performance compression driver with a 3” voice coil with a 1.4” exit throat allows RCF to lower the crossover point to 800 Hz, increasing intelligibility and linearity.
The diaphragm and suspension are precision formed from ultra-thin pure titanium. The suspension is based on an innovative design that drastically reduces distortion.
The horn’s asymmetrical design provides a tight 90° x 30° directivity that allows for the projection of sound energy with greater accuracy while avoiding undesired reflections.

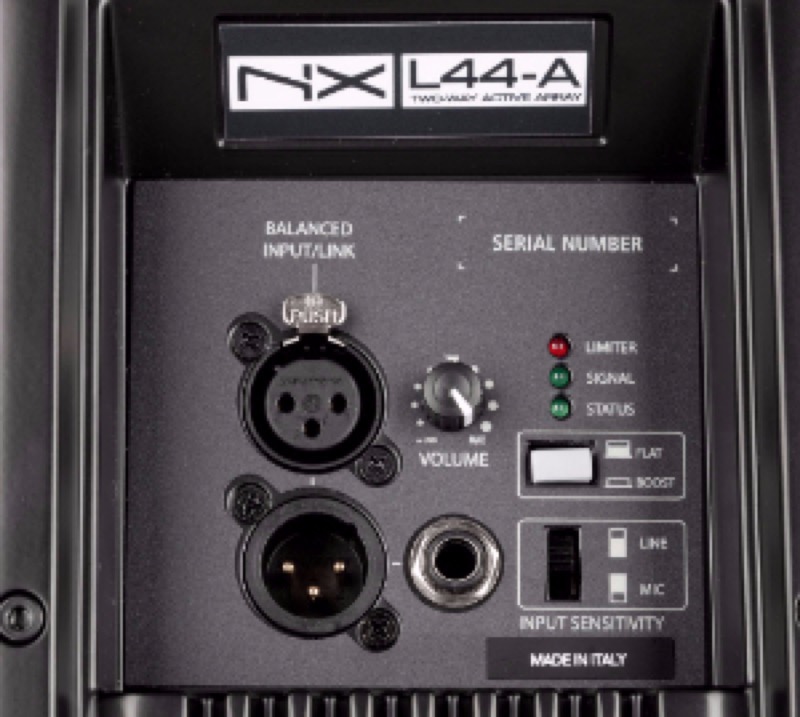

DSP processing and amplification
The NX L44-A is powered by a 1400W Class-D digital amplifier, with 400W driving the HF compression driver
and delivering 1000W for the LF.
A new generation DSP handles all the processing within the cabinet and allows adjustment for a single column application or HF close coupling application when cascaded in a stacked array.
The NX L44-A is a true active high-power ready-to-use two-way line source array system, equipped with a high efficiency digital amplifier that delivers superior SPL, while reducing energy requirements. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the space requirement is reduced to the minimum.
1. 2 X suspended curved
2. 2 X suspended straight
3. 1 X suspended
4. 1 X tripod
5. 1 NX L44-A + 2 X subwoofer 8004-AS
6. 2 X straight + subwoofer 8004-AS
7. 2 X straight + subwoofer 8006-AS
