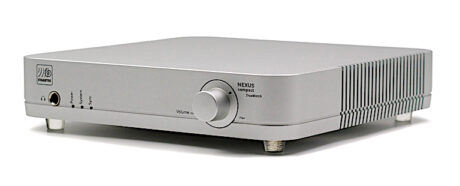

Stagetec’s NEXUS Compact is the ultimate high-end audio interface in a rugged, space-saving format. Boasting Stagetec’s legendary TrueMatch converters with an ultra-wide 158 dB dynamic range, it delivers pristine audio for the most demanding productions. With mic preamps, AES3, analog outs, Dante/AES67, and integrated DSP for EQ, dynamics, and auto mixing, it’s a powerhouse in a compact frame. Remote control via web GUI, Ember+, or Yamaha consoles makes NEXUS Compact your perfect partner—on the road, on stage, or in the studio.
The NEXUS Compact audio interface delivers the same state-of-the-art audio quality and exceptional reliability as the Nexus modular. Designed as a sleek edge device for NEXUS networks and Avatus mixing consoles, the NEXUS compact can be effortlessly integrated into broadcast environments through ember+ and GPIO’s. Furthermore, its standalone capabilities make the Nexus compact an excellent choice for premium mobile recording, as well as a versatile tool for both local and remote mixing.
The compact housing, measuring half the size of a 1U 19” rack (mounting kit for 1 or 2 pieces in 1 RU available), efficiently converts baseband and analog signals into IP audio standards, including AES67, Dante, Ravenna, and ST 2110-30/31. It utilizes open standards and protocols to ensure compatibility and flexibility. The NEXUS compact features an intuitive web browser-based user interface for controlling the on-board DSP mixer functions, providing seamless and user-friendly operation.
FEATURES

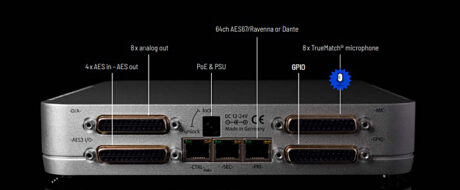

The NEXUS compact 2.0 is a versatile and powerful audio interface, designed with a fixed set of I/O resources, GPIOs for external control, and an audio-over-IP interface.
- 8 TrueMatch microphone inputs with 4-way splits
- 4 AES3 stereo inputs | 4 AES3 stereo outputs
- 8 analog outputs • Stereo headphone output
- 64 Dante or AES67 I/O channels
- 6 General Purpose Inputs (GPI) / 5 General Purpose Outputs (GPO), configurable in pairs as encoders
- Optional license for enhanced control of the NEXUS compact (Dante version only) from Yamaha CL/OL consoles. This configuration ensures high-quality audio performance and flexible connectivity for a wide range of professional audio applications. DSP Functions for Local Sound Processing
- 120 x 16 Mix Matrix: Versatile mixing capabilities for complex audio setups.
- 16 x Input Processing: Includes Delay, Expander, Equalizer (EQ), and Compressor for each input channel. • 16 x Output Processing: Features Delay, Equalizer (EQ), Compressor, and Limiter for each output channel.
- AVATUS Equalizers: High-quality EQs for precise sound shaping.
- AVATUS Compressors: Advanced compressors with modern wet/dry mix, adjustable knee, and soft-clip parameters.
- High-Resolution Conversion and Processing: Supports sampling rates up to 192 kHz for superior audio quality.
USER INTERFACE
The NEXUS compact is controlled using a web browser. Simply enter the IP address or URL into any browser on a tablet or laptop within the same network domain to access a comprehensive user interface. This interface provides full access to all parameters of the I/O resources, including the ability to store snapshots and configure the GPIOs.
MULTIFUNCTION AUDIO INTERFACE RELIABILITY
To ensure robust performance, the system incorporates both Power-over-Ethernet (PoE) and an external power supply. Additionally, network redundancy is achieved through SMPTE 2022-7 seamless protection switching, which is essential for modern SMPTE 2110 workflows.
For more info, visit: www.stagetec.com.
