ES 3160-II (p.n. 12135104) is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player and tuner and an aux input for an additional external music source.
The amplifier nominal power is 160 W, available on either a low impedance output (min. 4 Ω) or 100 – 70 V constant voltage output (for loudspeakers having 100 – 70 V transformers).
More details from RCF (www.rcf.it):
- CD-USB/MP3 Player / FM tuner / Mixer Amplifier
- Bluetooth connection with external device
- IR Remote control for CD – USB/MP3 player & tuner functions
- Full digital technology amplifier 160W RMS
- 100V-70V and 4 Ohm outputs
- 4 universal inputs with phantom facility
- Presence Control and per-channel High-Pass filters
- RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
- Screw terminal connections
- Additional XLR and RJ45 input connections available
- Configurable Priority settings, VOX facility on input 1
- Selectable aux input for music source with volume and tone controls
- USB port on front panel allows reproduction of MP3 files
- Music On Hold and PRE outputs

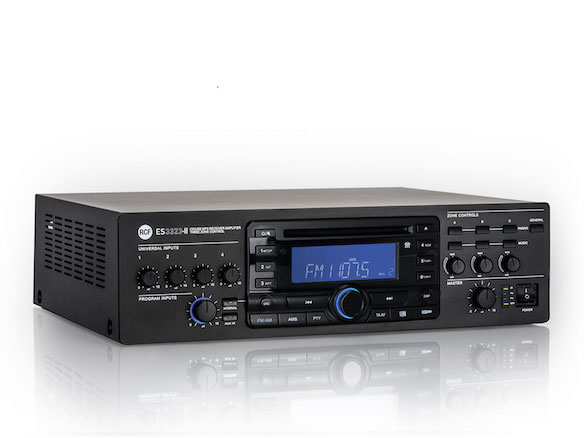

ES 3323-II (p.n. 12135105) is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player and tuner and an aux input for an additional external music source.
The amplifier nominal power is 320 W, available on 100 – 70 V constant voltage output (for loudspeakers having 100 – 70 V transformers). The 3 PAGING buttons on the front panel can be used to select zones to be paged by either the channel 1 or 4; The 3 MUSIC buttons turn the music on in the respective zones. As (optional) system expansion, it is possible to link a second generic external amplifier (delivering enough power for all loudspeakers, i.e. RCF UP 2321) to keep the background music in the zones that are not paged.
- CD-USB/MP3 Player / FM tuner / Mixer Amplifier / 3 zone control
- Bluetooth connection with external devices
- IR Remote control for CD – USB/MP3 player & tuner functions
- Full digital technology amplifier 320W RMS, 100V-70V outputs
- 4 universal inputs with phantom facility
- Presence Control and per-channel High-Pass filters. RJ45 connectors for connection to BM3001 and BM 3003 microphones
- Screw terminal connections
- Additional XLR and RJ45 input connections available
- Configurable Priority settings, VOX facility on input 1
- Selectable aux input for music source with volume and tone controls
- USB port on front panel allows reproduction of MP3 files
- Music On Hold and PRE outputs
- 3 PAGING buttons to page zones by either the channel 1 or 4
- GENERAL call button is available
- 3 MUSIC buttons to turn the music on in the respective zones
- Possible to link a external amplifier (i.e. RCF UP 2321) to keep the background music in the zones that are not page
