Loudspeaker manufacturer 1 Sound is now shipping its “The Towers” series LCC44 Cardioid Column Array, which employs innovative technology to achieve dramatic improvements in column array performance.
LCC44’s Clarity Technology achieves excellent high-frequency output for a compact column. Years of development have resulted in a coaxial waveguide that mates the coverage pattern of the four 1.5″ coaxially mounted compression drivers to the coverage of four mounted 4″ mid/bass drivers. These proprietary drivers set high standards for transient response, definition, high SPL and coverage. Combined this with cardioid cancellation, each speaker has a “musical,” coherent, 120° dispersion pattern.
The LCC44 incorporates three rear-facing 4″ drivers to achieve two goals: At low frequencies, the rear-facing drivers combine with the front facing drivers to achieve extended low frequency response never before achieved in a narrow column array. Response down to 90 Hz allows the full human vocal range to be reproduced without a subwoofer. At higher frequencies, the rear-facing drivers are fed a processed signal that provides cancellation of the low-mid frequencies that “wrap around” the enclosure. This reduces unwanted sound emitted from the rear of the enclosure.

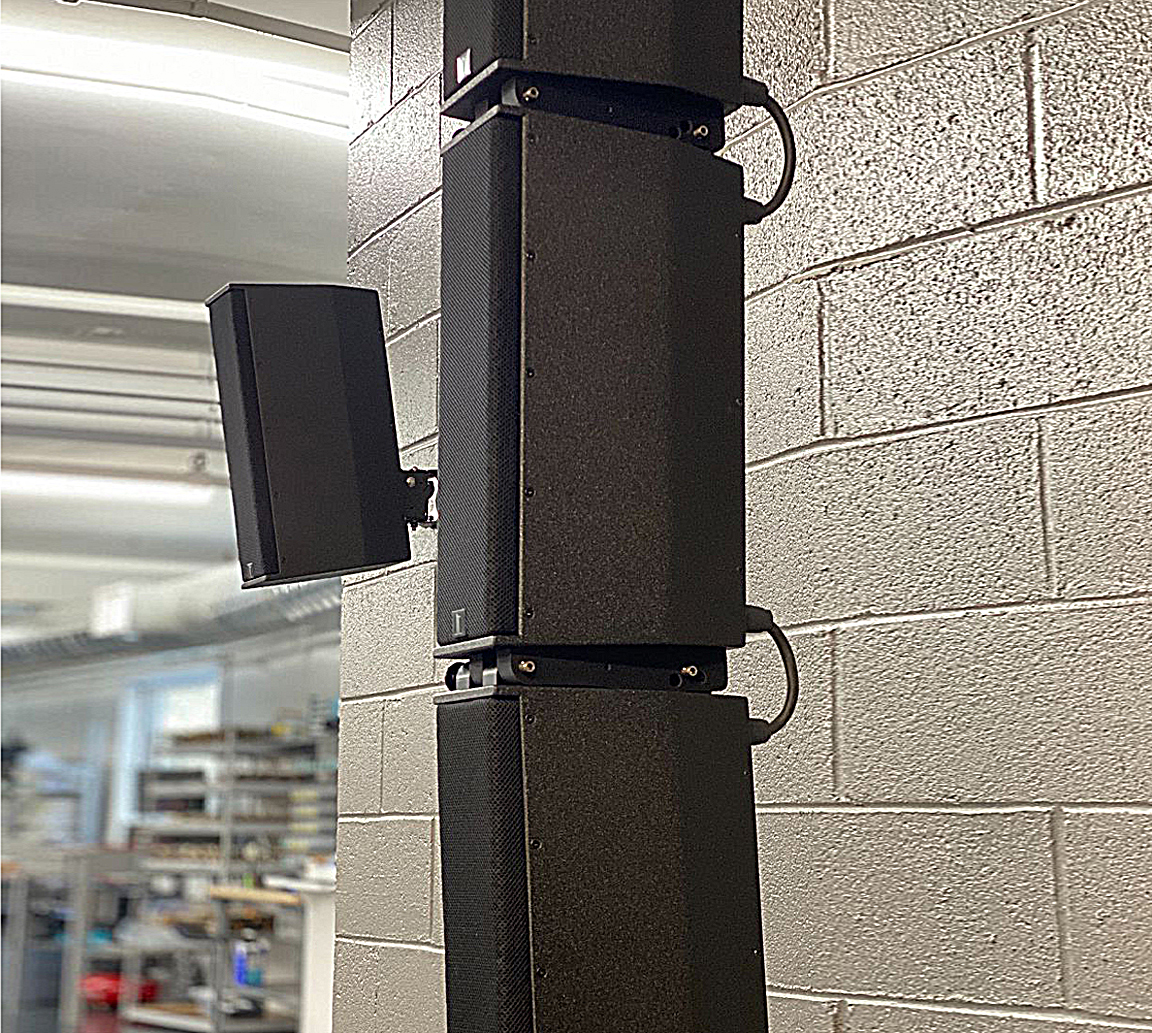

Systems incorporate friendly rigging and installation options. These include a steel subframe that creates an extremely robust cabinet, enabling hanging up to (10) LCC44’s utilizing integrated hardware. And easy-to use rigging hardware enables pole mount or flying applications with selectable angles of 0°/+3°/-3°, while a new bracket design allows for single-person installations of LCC44.
Enclosures in black and white finishes are in stock, and custom colors and fabrics available.
SPECIFICATIONS
Bandwidth: 112 Hz – 18 kHz (-6 dB)
Max SPL: 127 dB SPL @1m w/ preset
Power Handling: 800 watts (continuous); 400 watts (AES)
Directivity: 120° horizontal
Drivers: (4) 4” coaxial, each with a 1.5” compression driver; (3) 4” rear-facing full range
Impedance: 16Ω front, 24Ω back
Connectors: (4) NL4, 1+1- front, 2+2- rear
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: proprietary rigging elements and fly bars 0°, +3°, -3°, (14) available M6 points
Weight: 22 pounds
Construction: Finland birch plywood (phenolic glue), clear matte salt resistant coating, 316 stainless steel hardware
Dimensions (HxWxD): 17.75” x 6.3” x 9.5”
