As a versatile PA rig, it is hard to beat the flexibility of a mid-sized line array system with 8- or 10-inch woofers. When combined with subs, these compact high SPL solutions are at home in clubs, theaters, houses of worship, mid-sized art/music venues, sports facilities and outdoor events. On their own they can function as side fills, down fills or low-profile front fills. We found plenty to choose from, and here are a few to check out.
FEATURED LISTINGS:

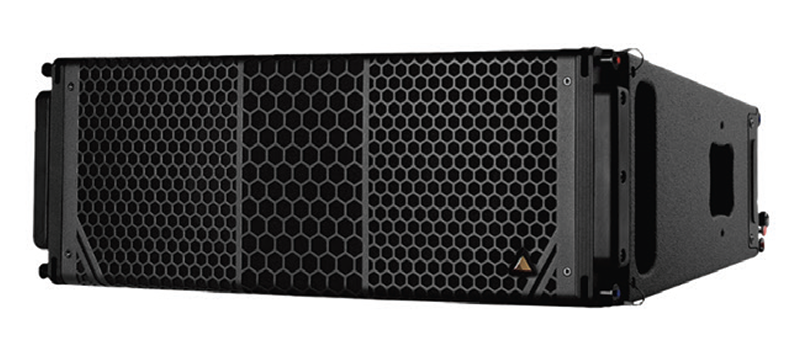

Adamson CS-10
- Configuration: Two-way, dual LF
- LF: (2) 10” neo high-excursion woofers
- MF/HF: 1.5” exit neo driver
- Response: 60 Hz – 18 kHz (±3 dB)
- Horiz. Dispersion: 110° – 10°
- Size (W x H x D): 29” x 10.4” x 20.7”
- Weight: 68.4 pounds
- Power: 2,400 watts Class-D
- Notes: AI network monitoring; dual redundant Milan scheme
- Companion Sub: CS-118

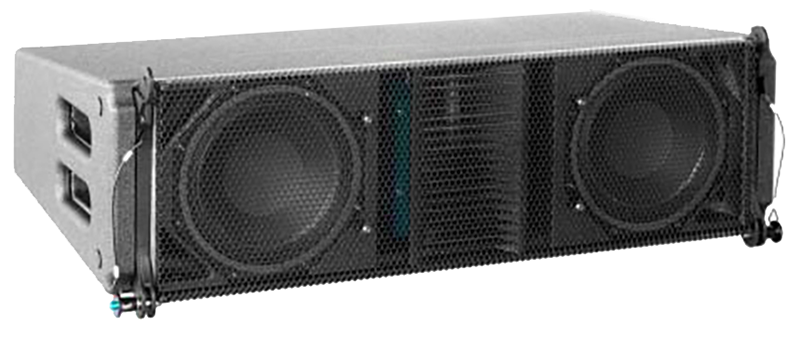

Alcons LR18/120
- Configuration: Three-way, dual LF
- LF: (2) 8” woofers
- MF: 6.5” cone midrange
- HF: 7” ribbon driver
- Response: 70 Hz – 20 kHz (± 3 dB)
- Dispersion (H x V): 120° x 10°
- Size (W x H x D): 31.1” x 8.9” x 17”
- Weight: 61 pounds
- Power: Unpowered
- Notes: 90° horiz. LR18/90 also available
- Companion Subs: LB18; LR18B

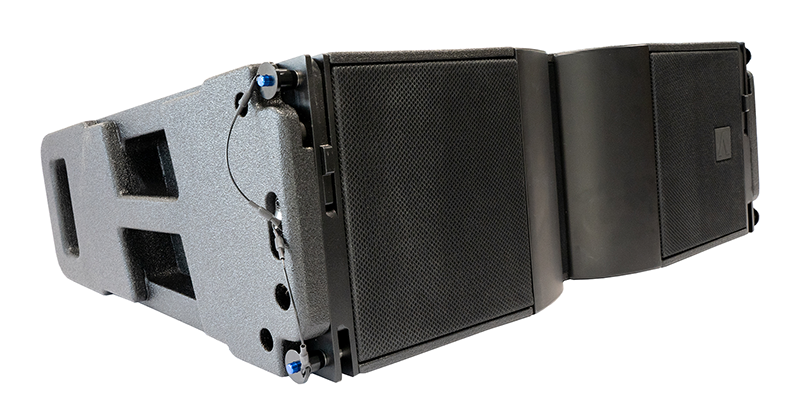

Avante Audio Akro ATL328
- Configuration: Three-way active, dual 8”
- LF: 2 x 8” neo woofers
- MF/HF: Coaxial 4” + 2.55” HF (Neodymium)
- Response: 70 Hz – 20 kHz
- Dispersion (H): 110°
- Size (W x H x D): 30″ x 18.3″ x 9″
- Weight: 60 pounds
- Power: 1,800W, Class D
- Notes: ARKO Command System Control software (Mac, iOS, Win PC)
- Companion Sub: Akro ATS218

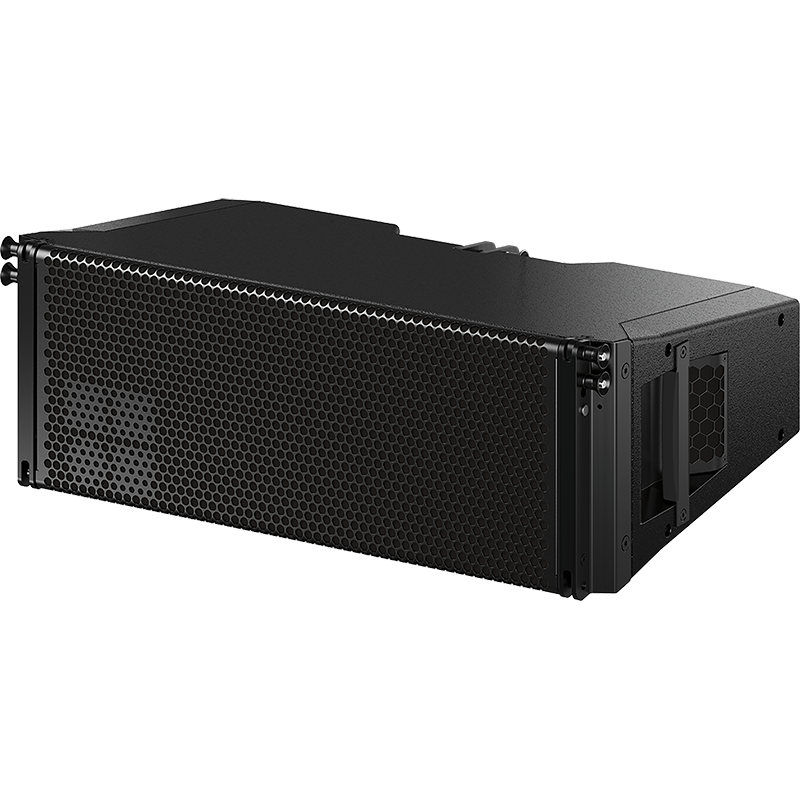

d&b audiotechnik CCL8
- Configuration: Two-way, quad LF, cardioid
- LF: (2) 7” neo forward-firing and (2) 5” neo side-firing woofers
- MF/HF: (2) 1.75” exit drivers
- Response: 62 Hz – 18 kHz (-5 dB)
- Horiz. Dispersion: 80°
- Size (W x H x D): 23.35” x 8.23” x 14”
- Weight: 38.8 pounds
- Power: Unpowered
- Notes: Driver arrangement/processing maintains directivity across entire bandwidth
- Companion Subs: CCL-SUB

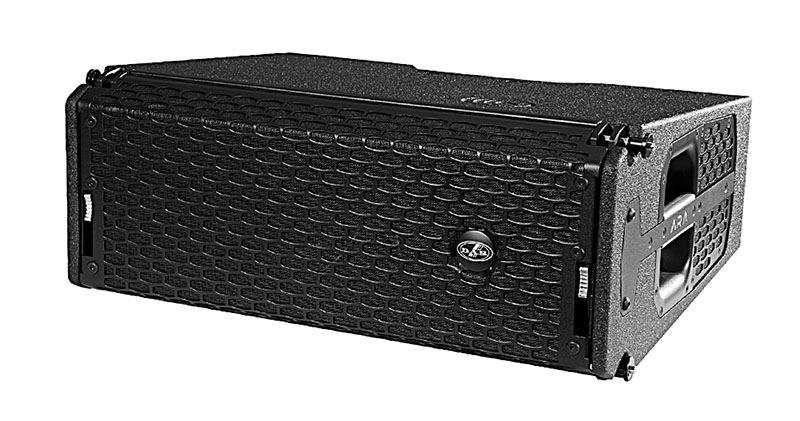

DAS Audio SARA 100
- Configuration: Two-way, dual LF
- LF: (2) 8” cone woofers
- MF/HF: 3” M-78-N driver
- Response: 60 Hz -18 kHz
- Horiz. Dispersion: 100°
- Size (W x H x D): 26” x 10.5” x 20.3”
- Weight: 75 pounds
- Power: 3,000W Class D
- Notes: Built-in captive rigging system
- Companion Subs: LARA-SUB, SARA-SUB

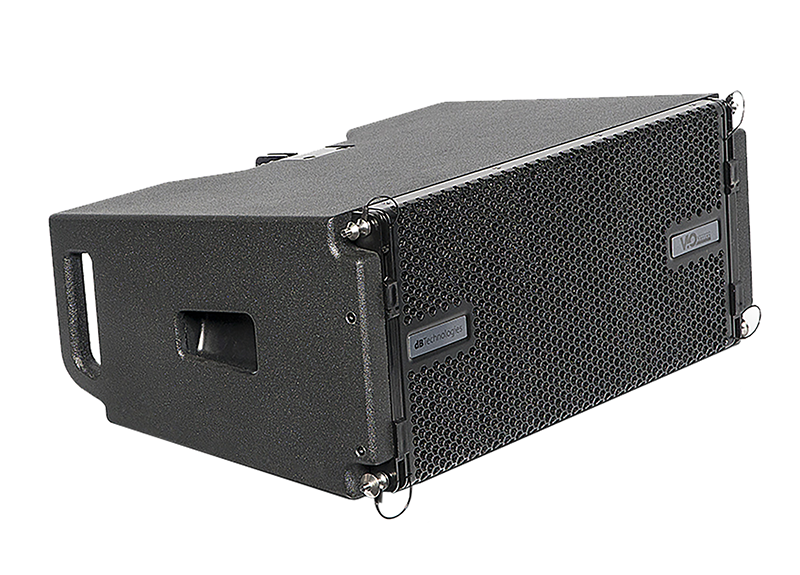

dB Technologies VIO L208
- Configuration: Two-way, dual LF
- LF: (2) 8” neo cone woofers
- MF/HF: 1.4” exit neo driver
- Response: 85 Hz -18.1 kHz (±3 dB)
- Horiz. Dispersion: 100°
- Size (W x H x D): 25.9” x 10.23” x 15.35”
- Weight: 39.9 pounds
- Power: 900W Class D
- Notes: Built-in rigging system, dedicated 3-point fly frame
- Companion Sub: VIO S118R

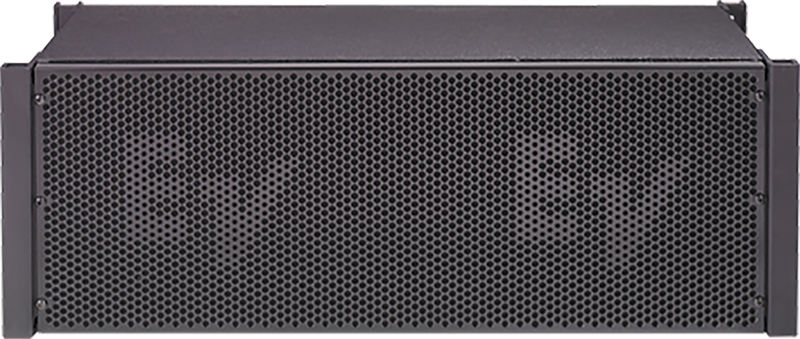

Electro-Voice XLD281
- Configuration: Three-way, dual LF
- LF: 8” neo woofer
- MF: 8” LF/Mid cone driver
- HF: (2) 1” exit neo drivers
- Response: 75 Hz – 18 kHz (-3dB)
- Horiz. Dispersion: 120°
- Size (W x H x D): 28.58” x 9.9” x 14.52”
- Weight: 48 pounds
- Power: Unpowered, Bi or Tri Ampable
- Notes: 90° XLD 291 version available
- Companion Subs: XCS312, XLC215

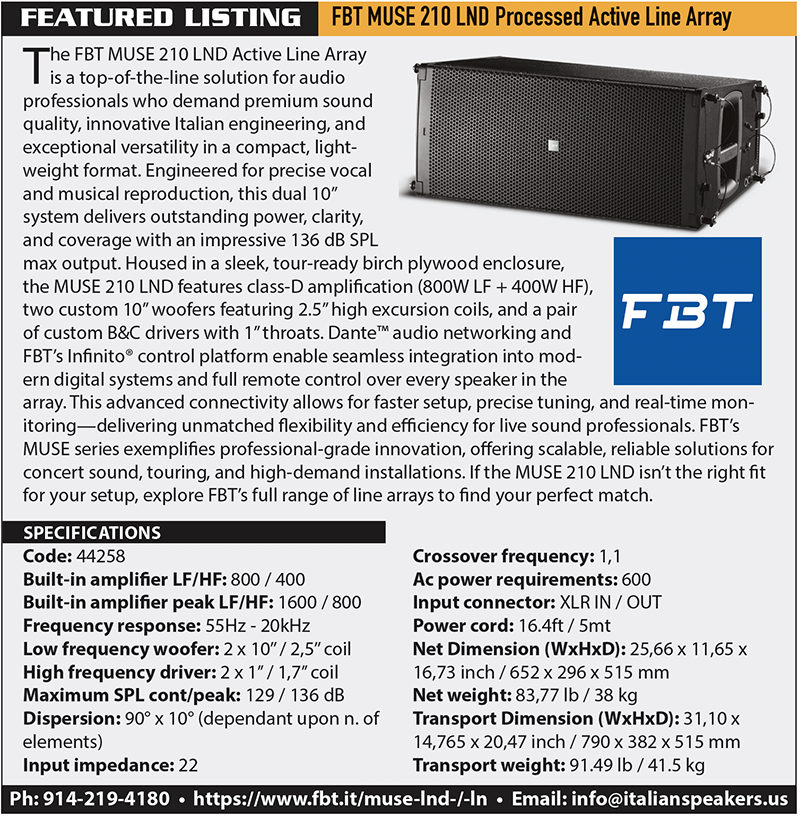

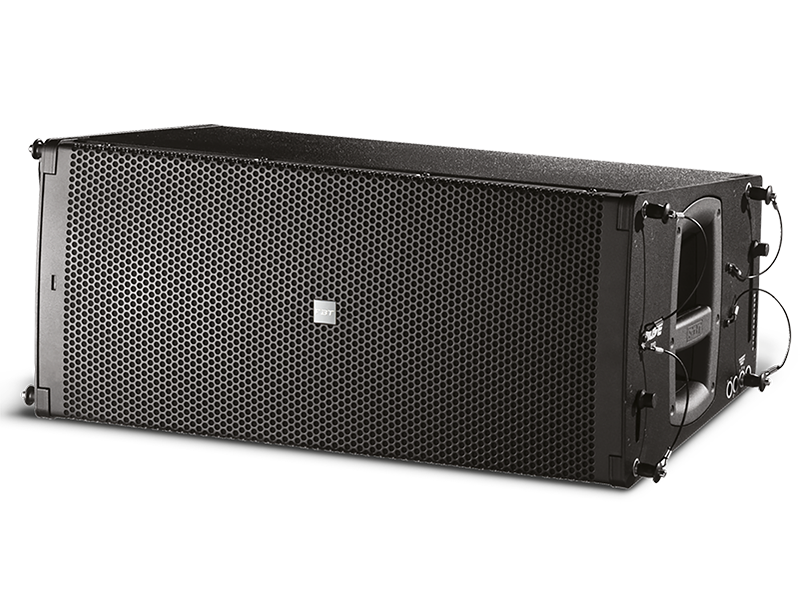

FBT Muse 210LND
- Configuration: Two-way dual LF
- LF: (2) 10” woofers
- MF/HF: (2) 1” compression drivers
- Response: 55 Hz – 20 kHz (-6 dB)
- Dispersion (H x V): 90° x 10° (max # units)
- Size (W x H x D): 31.10” x 14.76” x 20.47”
- Weight: 41.5 pounds
- Power: 1,200W Class D
- Notes: Dante 24 BIT 48-96 kHz TCP/IP audio streaming, OLED display
- Companion Subs: 118FSA/FSCA

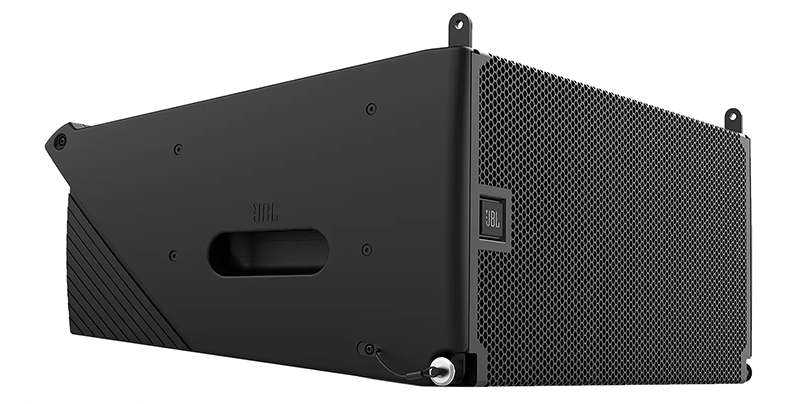

JBL SRX 910LA
- Configuration: Two-way, dual LF
- LF: (2) 10” neo woofers
- MF/HF: 1.5” exit neo driver
- Response: 53 Hz – 19 kHz (Array Preset)
- Horiz. Dispersion: 105° Nominal
- Size (W x H x D): 28.2” x 12.0” x 20.5”
- Weight: 59 pounds
- Power: 600W, Class D
- Notes: High-density system solution in a truck-pack friendly format
- Companion Subs: SRX918S, SRX928S

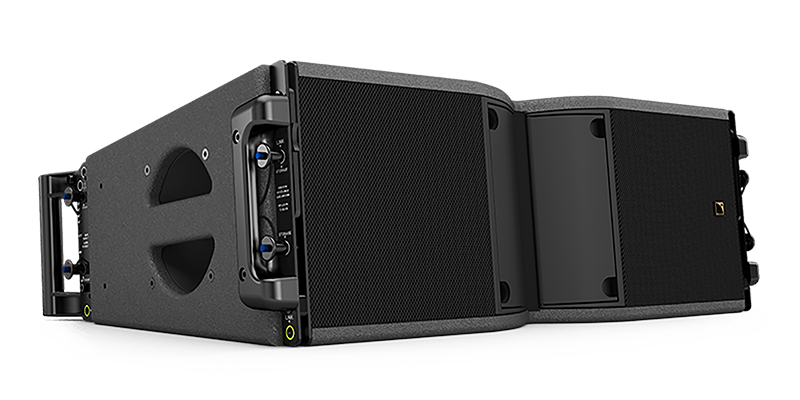

L-Acoustics KARA II
- Configuration: Two-way, dual LF
- LF: (2) 8” neo cone woofers
- MF/HF: 3” neo compression driver
- Response: 55 Hz – 20 kHz (-10 dB)
- Horiz. Dispersion: 70° / 110° symmetric or 90° asymmetric
- Size (W x H x D): 28.9” x 9.9” x 15.1”
- Weight: 57 pounds
- Power: Unpowered
- Notes: Four horizontal directivity patterns, captive rigging system
- Companion Sub: SB18

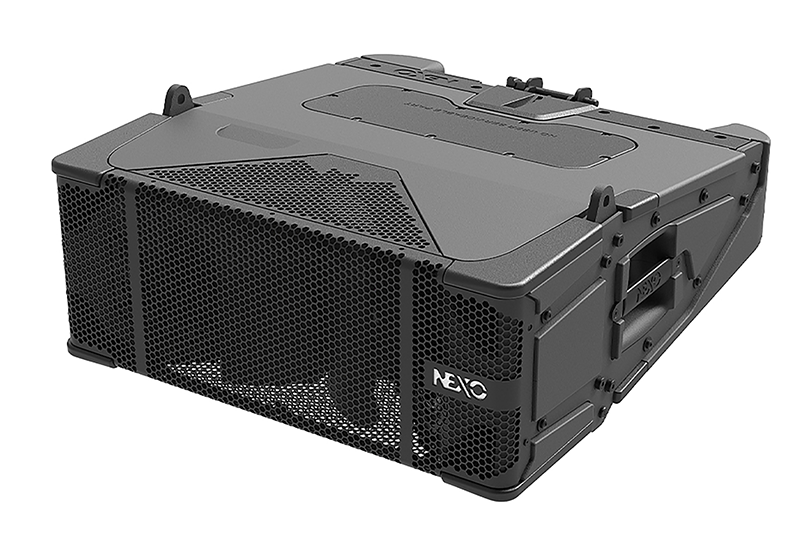

Nexo M28
- Configuration: Two-way, dual LF
- LF: (2) 8” neo high-excursion woofers
- MF/HF: (2) 1.4” exit neo drivers
- Response: 60 Hz – 20 kHz (±3 dB)
- Horiz. Dispersion: 90° – 120° configurable
- Size (W x H x D): 22.6” x 9.2” x 25.7”
- Weight: 82 pounds
- Power: Unpowered
- Notes: CompassRig and REDLock rigging, enable a small team to safely fly any size system
- Companion Sub: MSUB18

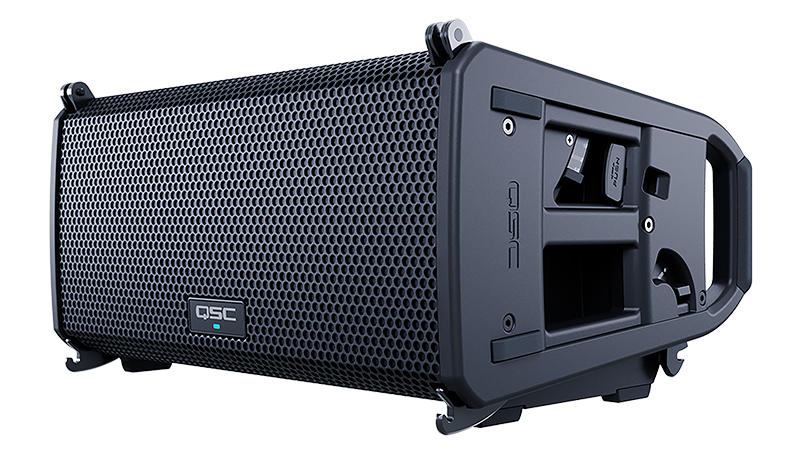

QSC LA108
- Configuration: Two-way, single LF
- LF: 8” woofer
- MF/HF: 1.75” exit driver w/LEAF waveguide
- Response: 62 Hz – 20 kHz (-6 dB)
- Dispersion (H x V): 100° x 15°
- Size (W x H x D): 20.4” x 10.7 “x 14.7”
- Weight: 30.1 pounds
- Power: 1300W, Class D
- Notes: Integrated Dante digital audio-over-IP, Remote SysNav configuration app
- Companion Sub: LS118

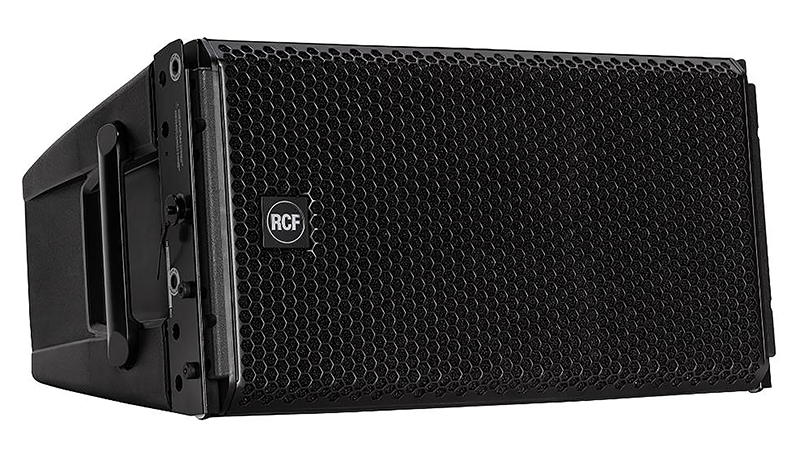

RCF HDL 28A
- Configuration: Two-way, dual LF
- LF: (2) 8” neo woofers
- MF/HF: 1.4” exit titanium driver
- Response: 50 Hz – 20 kHz
- Horiz. Dispersion: 100°
- Size (W x H x D): 22.4” x 11.57” x 19.33”
- Weight: 45.4 pounds
- Power: 1,100W, Class D
- Notes: Integrated RCF RDNet networked control
- Companion Sub: HDL 36-AS

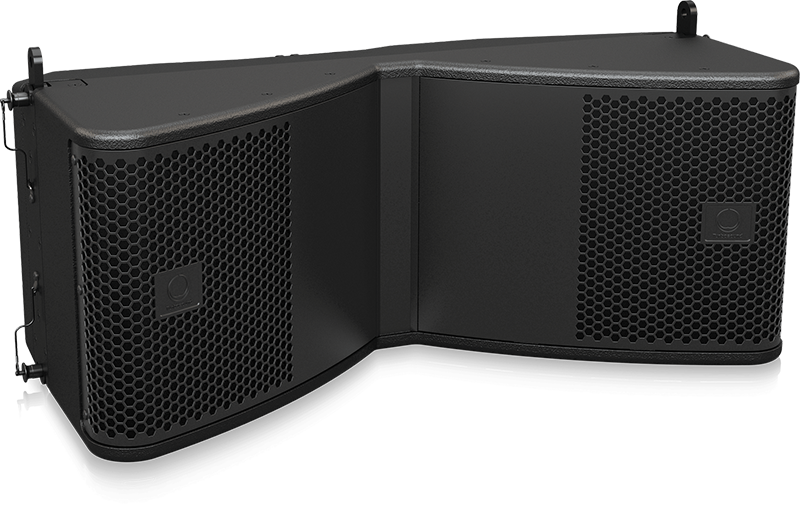

Turbosound Manchester MV210 HC
- Configuration: Two-way, dual LF
- LF: (2) 10” neo cone woofers
- MF/HF: 1.4” dual compression driver
- Response: 58 Hz – 20 kHz (-3 dB)
- Dispersion (H x V): 100° X 20°
- Size (W x H x D): 28.1” x 11.6” x 21.5”
- Weight: 78.3 pounds
- Power: Unpowered
- Notes: Presets offer seamless integration with the Lab Gruppen PLM+
- Companion Sub: MS215
